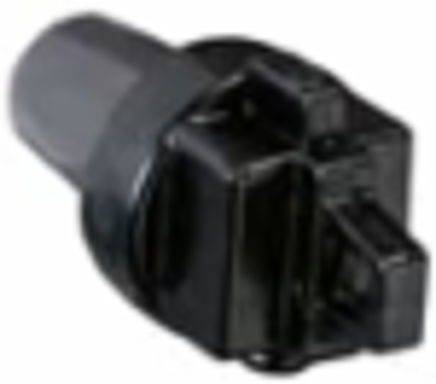

Thomas & Betts 276BWP 15/25KV LB BUSHING WELL PLUG
- MPN: 276BWP
- UPC: 783786626335
- PPN: T-B-276BWP
- UNSPSC: 26121630
CAD
$332.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV 200 Amp, Loadbreak Bushing Well Plug
Specifications
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
Additional Information
| Application | Fully shielded, fully submersible, insulating plug designed for de-energized operation. It is suitable for use on 15/25kV class bushing wells to Dead-End the transformer or switchgear for testing purposes. |
|---|---|
| Effective Date | 19980115 |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | 5.55 inch (141.0 mm) Length, 2.78 inch (70.4 mm) width |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Bushing Well Plug |
| Special Functions | 15/25kV, Rated. Molded EPDM Rubber. Provision for hotstick operation. Securely insulates and Dead-Ends bushing well. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
