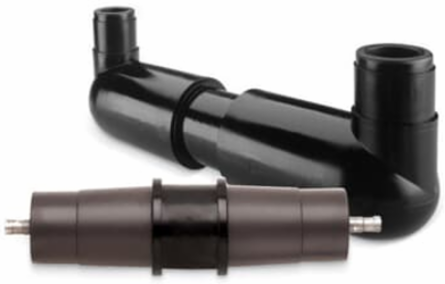

Thomas & Betts M15CLF030-66-WMBQ 15 KV MOLDED FUSE WITH WMBQ
- MPN: M15CLF030-66-WMBQ
- UPC: 075114414845
- PPN: T-B-M15CLF030-66-WMBQ
- UNSPSC: 39121626
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 15.0kV, Current Rating Amps 30, Option 66 - 600 Amp bushings Well on both ends, WMBQ option - Wall Mount Bracket with parking stands and Quick Release style hold down straps
Features
- EPDM Molded Rubber Deadfront Construction Insulates, Shields and Eliminates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Range Fault Current Protection thru 50kA. Current Limiting Protection limits the System Available Fault Current and Dramatically reduces Stresses on Equipment. Internal Fuse Shield Prevents Corona and Deterioration of the Fuse Element
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Standard | ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386 |
| Voltage Rating | 15 kV |
| Material | EPDM Molded Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4980 |
| Application | Suitable for Padmount, Subsurface or Vault Installations |
| Amperage Rating | 30 |
| Mounting | Clip |
| Size | Overall Length 19-5/8 in (498mm) x Width 5-1/8 in (130mm) |
