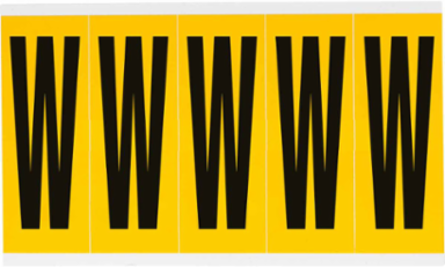

Brady 1560-W 15 Series Pressure Sensitive Vinyl Letter Label 3.875 Inch H, Black on Yellow
- MPN: 1560-W
- UPC: 754473971229
- PPN: BRD-1560-W
- UNSPSC: 55121721
CAD
$14.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-946 vinyl is printed with weather resistant inks and is suited for use in outdoor applications where weatherability is a key consideration.
Features
- Designed for permanent applications in severe indoor or outdoor environments
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
- Average outdoor durability 8-10 years
Documentation & Downloads
Specifications
Key Specifications
- Applications
- General Identification; Pipe and Valve Marking; Safety Identification
- Cards or Sheets per Pack
- 1
- Compatible Surface Types
- General
- Finish
- Gloss
- Primary Noun, Basic Function
- Label
- PSPA Photoluminescence Class
- Not Illuminated
- Reflective Type
- Non-Reflective
- Text Legend
- W
- Adhesive (Y/N)
- Yes
- Brady Material Number
- B-946
- Label Properties
- Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; UV-Resistant; Weather-Resistant
- Character Height (in/ft/yd)
- 3.875 in
- Dimensions
- 5 in H x 1.75 in W
- Dimensions 2
- 5 in H x 1.75 in W
- Height (mm/cm/m)
- 127.00 mm
- Maximum Service Temperature °F
- 180 °F
- Minimum Application Temperature °F
- 0 °F
- Minimum Service Temperature °F
- -40 °F
- Sign Size-General
- 5 in x 1.75 in
- Thickness (in/ft/yd)
- 0.004 in
- Width (in/ft/yd)
- 1.75 in
Brand NameBrady®
ColorBlack on Yellow
Enables Industry ComplianceASTM D 2979
Label/Media FormatDie-Cut on Cards
Printer and Label ApplicationsGeneral Identification; Pipe Marker
Quantity per Card or Sheet5
ShapeRectangle
Total Qty per Pack125 Label(s) / Pack
Adhesive TypePermanent Acrylic
Indoor or Outdoor UseOutdoor Use
MaterialVinyl
SAP B-NumberB-946
Character Height (mm/cm/m)98.43 mm
Dimensions (Metric)44.00 mm W x 127.00 mm H
Height (in/ft/yd)5 in
Maximum Service Temperature °C82 °C
Minimum Application Temperature °C-18 °C
Minimum Service Temperature °C-40 °C
Sign Size5 in H x 1.75 in W
Size - Width (mm)44.00 mm
Thickness (mm/cm/m)0.102 mm
Width (mm/cm/m)44.5 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
