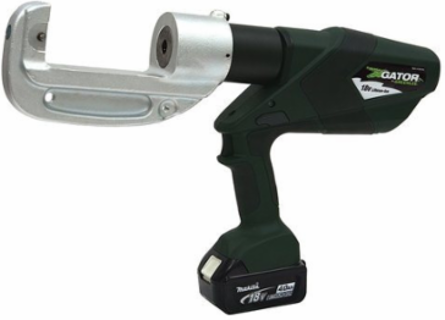

Greenlee EK1550LX22 15 Ton Die Style Crimper, Li-Ion, 230V, 1000 Kcmil Capacity, Pistol Grip
- MPN: EK1550LX22
- UPC: 783310610724
- PPN: GRN-EK1550LX22
- UNSPSC: 27111518
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15 Ton Die Style Crimper, Li-Ion, 230V, 1000 Kcmil Capacity, Pistol Grip
Features
- Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app
- Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback
- Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
- Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
- LED light provides the operator with the battery charge and tool maintenance status
- Two-stage hydraulic system provides fast advance and power speeds, saving time
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany
- Sub Brand
- Gator
- Standard
- C/US UL Listed
- Overall Length
- 19.625 IN (498mm)
- Crimping Capacity
- 1000 Kcmil (MCM) Cu & Al
Handle TypePistol Style with over molded rubber grip
TypeDie style crimper
Wire Size8 AWG - 1000 Kcmil Cu & Al
Crimping Force30,000 lbs. (134 kN)
Connector TypeColor-coded lugs and splices
