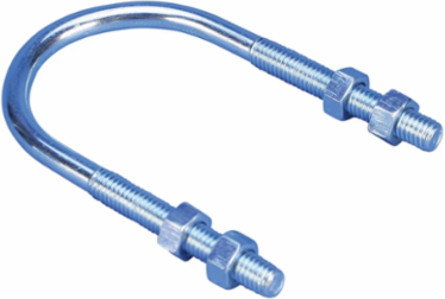

nVent Caddy 150M0250EG 150M Standard U-Bolt, Steel, EG, 2 1/2" Pipe, 2.875" OD, 1/2" Rod
- MPN: 150M0250EG
- UPC: 782856601630
- PPN: CAD-150M0250EG
- UNSPSC: 31161616
CAD
$19.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
150M Standard U-Bolt, Steel, EG, 2 1/2" Pipe, 2.875" OD, 1/2" Rod
Features
- Pipe support for general piping applications
- Comes complete with 4 nuts (2 installed on each end)
- Conforms with Federal Specification WW-H-171 (Type 24), Manufacturers Standardization Society ANSI®/MSS-SP-58 (Type 24)
Documentation & Downloads
Specifications
Additional
| Static Load | 8,900 lb |
|---|---|
| Screw Length | 76.2 mm |
| Outer Diameter | 73 mm (2.875 in) |
| Material | Steel |
| Standards | Federal WW-H-171, ANSI/MSS-SP-58 |
| Static Load (F) | 2,020 lb |
|---|---|
| Pipe Size | 2.5 in |
| Rod Diameter | 1/2 in |
| Finish | Electrogalvanized (EG) |
| Sub Brand | CADDY |
