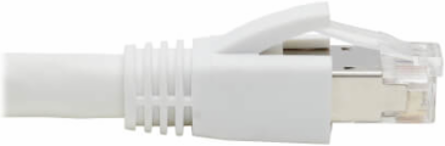

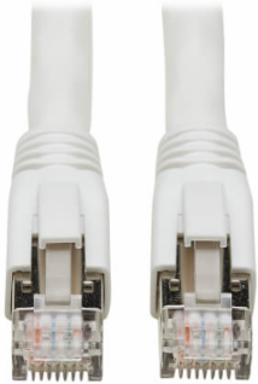

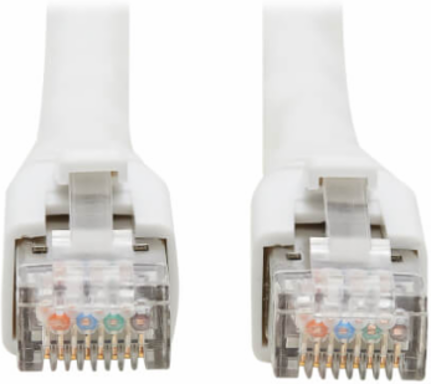

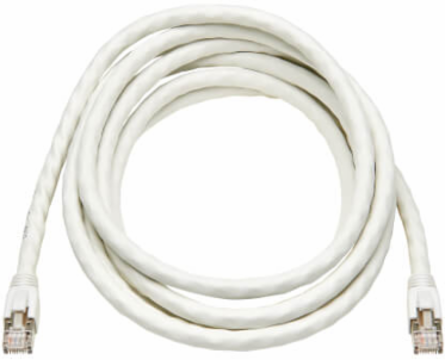

Tripp Lite N272F15WH Ethernet Cable, Cat8 40G Snagless SSTP, RJ45 M/M, PoE+, White, 15 ft
- MPN: N272F15WH
- UPC: 037332281906
- PPN: TRP-N272-F15-WH
CAD
$46.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cat8 40G Snagless SSTP Ethernet Cable (RJ45 M/M), PoE, White, 15 ft. (4.6 m)
Documentation & Downloads
Specifications
Performance
- Technology
- Cat8
- Bandwidth per TIA Standard
- 1000 MHz
- PoE Type
- Type 2 PoE+ (30W, IEEE 802.3at)
- Operating Temperature Range
- 14 to 122 F (-10 to 50 C)
- Operating Humidity Range
- 0% to 90% RH, Non-Condensing
Network Compatibility40 Gbps
Maximum Bandwidth as Tested1200 MHz
IEEE Standards Supported802.3at
Storage Temperature Range-5 to 140 F (-15 to 60 C)
Storage Humidity Range0% to 90% RH, Non-Condensing
Material
- Cable Jacket Color
- White
- Cable Jacket Rating
- CM
- Conductor Material
- Stranded Copper
Cable Jacket MaterialPVC
Cable ShieldingSSTP
Connector PlatingNickel
Dimensions
- Cable Length
- 15 ft
- Side B - Connector 1
- RJ45 (Male)
- Connector Style
- Straight
- Number of Conductors
- 4 Pair
- Cable Outer Diameter
- 6.0 mm
Side A - Connector 1RJ45 (Male)
Connector TypeSnagless
Wiring ConfigurationEIA/TIA 568B
Conductor Gauge26 AWG
Reference
- Product Warranty Period
- Lifetime limited warranty
