Thomas & Betts 168ELR-6689-5250 Loadbreak Repair Elbow Connector with Test Point
- MPN: 168ELR-6689-5250
- UPC: 783786084524
- PPN: T-B-168ELR-6689-5250
CAD
$772.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

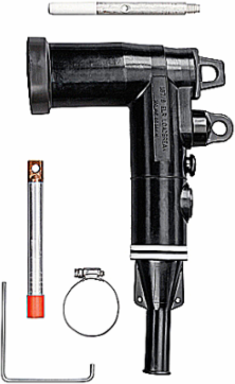

15kV 200 Amp, Loadbreak Repair Elbow Connector with Test Point, Repair Elbow has extended length contact and elbow housing resulting in a net gain of 3-1/4 inches in length. Bi-Metal Contact. Cable Insulation Diameter 0.665 inch to 0.895 inch. Conductor Size 2/0 Stranded/Compressed or 3/0 Compact/Solid
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 3-1/4 inch (82.6mm).
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression/Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Fully Submersible
IGCC4586 Electrical connector assembly
TypeLoadbreak Repair Elbow Connector with Test Point
ApplicationDesigned for connecting to and operating 15kV Class, 95kV BIL apparatus.
SizeWidth 7.95 inches, Length 11.71 inches from bottom to center of Bushing.
Conductor RangeConductor Size 2/0 Stranded/Compressed or 3/0 Compact/Solid.
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist OfIncludes Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Tube of Lubricant, Installation Instructions, Crimp Chart and V.D. Cap-Peroxide.
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)3.62x12.56x8.5
