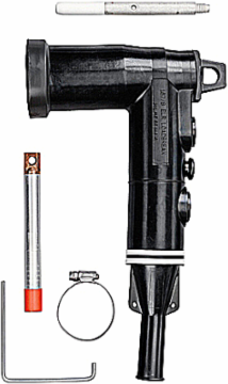

Adaptaflex 167ELR-6689-5220-SG3 15KV 200A LB REPAIR ELBOW W-SEALING

15KV 200A LB REPAIR ELBOW W-SEALING
  • MPN: 167ELR-6689-5220-SG3
  • UPC: 075114303668
  • PPN: T-B-167ELR-6689-5220-SG3
  • UNSPSC: 39121421

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$899.58/ EA

Description

15kV, 200 Amp, LoadBreak, Repair Elbow Connector/Extended Elbow, Cable Insulation .665-.895 inches, Bi-Metal Compression Lug, Conductor Size #2 Stranded/Compressed or #1 Compact/Solid. Cold-Shrinkable Seal with Copper Braid and Constant Force Spring

Features

  • Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured insulation, insert and jacket. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Extended Length Housing and Compression Lug - plus 3-1/4 inch (82.6mm)

Specifications

Specifications

Country of Origin
United States
Buy American Act (BAA) Compliant
Contact Manufacturer
Brand Name
ELASTIMOLD
Connection
Compression
Size
Width 7.10 inch, Length 11.70 inch from bottom to center of probe
Material
Housing - EPDM Rubber
Color
Black
Insulation
Yes, EPDM Rubber
Environmental Conditions
Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationDesigned for connecting to and operating 15kV Class, 95kV BIL apparatus
StandardANSI/IEEE Standard 386 / ANSI/IEEE Standard 386
Conductor Range#2 STR/COMPR AWG , #1 SOL/COMPT AWG
Voltage Rating15 kV
Amperage Rating200 A
Temperature Rating-40 to +65 C
