Thomas & Betts 656LRTP-J0270 15KV 600A DB S-OP CONN TP J0270
- MPN: 656LRTP-J0270
- UPC: 783786513154
- PPN: T-B-656LRTP-J0270
- UNSPSC: 39121421
CAD
$1193.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

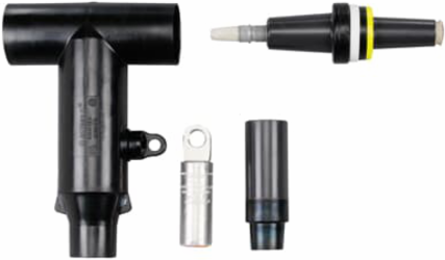

600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Stick-OP Elbow Connector Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug.
Specifications
Additional Information
- Application
- Connect 600 Amp interface to 200 Amp Loadbreak Tap
- Color
- Black
- Effective Date
- 20070119
- Environmental Conditions
- All Weatheronditions °C
- Material
- Housing - EPDM Rubber
- Product Type
- Stick Op Reducing Tap Plug Connector with Test Point
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 kV
Brand / LabelElastimold
Current Rating600 to 200 A
Enclosure TypeYes, EPDM Rubber
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL CONNECTOR,>1000V
Special FunctionsReducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow.
Temperature Range-40 to +65 °C
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
