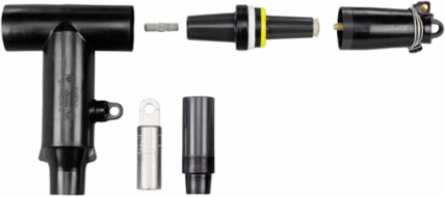

Thomas & Betts 656ETP-J0270-DRG 15KV 600A ETP ELBOW KIT TP J0270DRG
- MPN: 656ETP-J0270-DRG
- UPC: 783786197637
- PPN: T-B-656ETP-J0270-DRG
- UNSPSC: 39121421
CAD
$1177.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Series Elbows with IEEE 386 Capacitive Test Points, 600 Amp, 15kV, Test and Ground Connector Kit, Insulated Cap. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125.
Specifications
Additional Information
| Application | 600 Amps, 15kV |
|---|---|
| Color | Black |
| Current Rating | 600 A |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | electrical connector,>1000v" |
| Size | Cable Insulation Diameter 0.980 inch to 1.180 inch. |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 15 kV |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20000602 |
| Material | Housing - EPDM Rubber |
| Product Type | Window-Op Connector |
| Special Functions | Capacitive Test Point, Insulated Cap |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
