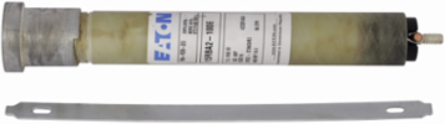

Eaton 15RBA2-125E RBA expulsion fuse refill, Type RBA2, 125E, 16 kV max, 14 kV nominal, E class
- MPN: 15RBA2-125E
- UPC: 786670230052
- PPN: BUS-15RBA2-125E
CAD
$1030.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RBA expulsion fuse refill, Type RBA2, 125E, 16 kV max, 14 kV nominal, E class
Documentation & Downloads
Specifications
Key Specifications
| Type | RBA2 |
|---|---|
| Voltage Rating | 14 kV |
| Class | Class E |
|---|---|
| Amperage Rating | 125E |
General
| UPC | 786670230052 |
|---|---|
| Product Height | 1.5 IN |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Catalog Notes | Also Used in RDB Fuseholders. Mountings are no longer available for use with BA refills, but a small range of replacement fuse holders are still available. New and replacement applications should use RBA fuses that have superseded BA fuses. |
| Product Length/Depth | 8.75 IN |
|---|---|
| Product Width | 1.5 IN |
| Certifications | IEEE Std. C37.41 |
