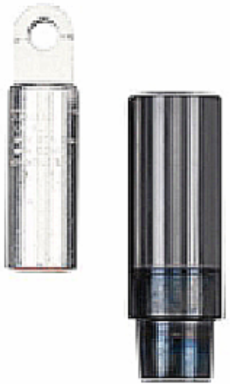

Thomas & Betts 655CK-K0300-SG3 Cable Adapter and Lug
- MPN: 655CK-K0300-SG3
- UPC: 075114308717
- PPN: T-B-655CK-K0300-SG3
CAD
$249.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185. 200ECS-G3 Jacket Seal and Grounding Kit Included.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 26121630 Cable accessories |
|---|---|
| Brand Name | Elastimold |
| Special Features | Cold-Shrinkable Seal with Copper Braid and Constant Force Spring |
| Standard | ANSI/IEEE 386 |
| Material | EPDM Cable Adapter |
| Connection | Crimp/Compression |
| IGCC | 1779 Cable accessories |
|---|---|
| Type | Cable Adapter and Lug |
| Application | Deadbreak, 600 Amp, 15/25kV |
| Size | Conductor Size kcmil Compressed/Stranded 350 or Compact/Solid 400 |
| Temperature Rating | -20 Degrees Celsius to +65 Degrees Celsius |
Packaging
| Outer Quantity | 1 |
|---|---|
| Weight Uom | 1 lbs. Each |
| Outer Dimensions (inches) | 8.25x5.12x3.5 |
|---|
