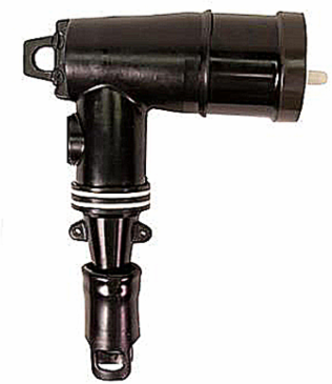

Thomas & Betts 161LRJS-B-5250 Loadbreak Elbow Connector and Jacket Seal
- MPN: 161LRJS-B-5250
- UPC: 075114185479
- PPN: T-B-161LRJS-B-5250
CAD
$219.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV 200 Amp, Loadbreak Jacket Seal Elbow Connector, .635 inch - .905 inch Cable Insulation Diameter, 2/0 Stranded Wire Size, Bi-Metal Compression Lug
Specifications
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)10.5x19.12x12.5
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully Shielded, Fully Submersible Molded Rubber Housing, 100 Percent Peroxide-Cured Construction includes Insulation and Conductive EPDM Materials. Provision for Hot Stick Operation. Provision for Ground Wire Connection. Built in Cable Jacket Seal.
- Standard
- ANSI/IEEE Standard 386
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- Products are designed and constructed for all applications including Padmount, Subsurface, Vault, Indoor, Outdoor, Direct Sunlight, Direct Buried and Continuously Submerged in Water.
IGCC4586 Electrical connector assembly
TypeLoadbreak Elbow Connector and Jacket Seal
ApplicationThe 161LRJS is designed for Connecting to and Operating 15kV Class, 200 Amp Distribution apparatus. It Provides a Convenient Method to Connect/Disconnect Cable and Equipment on Power Distribution Systems.
Conductor Range2/0 Stranded Wire Size
ColorBlack
Amperage Rating200 Amps
Temperature Rating-20 Degrees C to +65 Degrees C
Consist Of(1) Elbow Connector Housing, (1) Bi-Metal Compression Lug, (1) Probe, (1) Lubricant Tube, (1) Crimp Chart, (1) Butyl Auto Tape, (1) Installation Instructions
