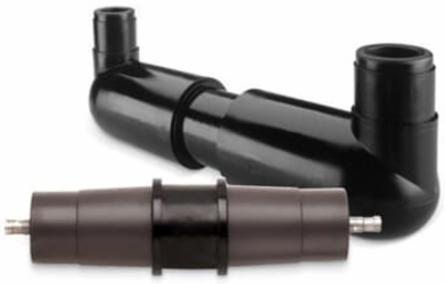

Thomas & Betts M15CLF100-6E2-SMB 15KV MCLF FUSE WITH SMB
- MPN: M15CLF100-6E2-SMB
- UPC: 075114410700
- PPN: T-B-M15CLF100-6E2-SMB
- UNSPSC: 39121626
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 15 kV, Current Rating 100 Amps, Option 6E2 - 600 Amp Elbow Connector on one end and a 200 Amp bushings Well on the other end, Option SMB - Support Mounting Bracket includes Bolted-Style Hold-Down Strap.
Features
- EPDM Molded Rubber Deadfront Construction Insulates, Shields and Eliminates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Range Fault Current Protection thru 50kA. Current Limiting Protection limits the System Available Fault Current and Dramatically reduces Stresses on Equipment. Internal Fuse Shield Prevents Corona and Deterioration of the Fuse Element
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Standard | ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386 |
| Voltage Rating | 15 kV |
| Material | EPDM Mplded Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4980 |
| Application | Suitable for Padmount, Subsurface or Vault Installations |
| Amperage Rating | 100 A |
| Mounting | Brackets |
