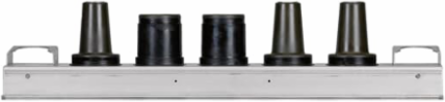

Thomas & Betts J5-22666-15-R 15KV MULTIPOINT JUNCTION -R
- MPN: J5-22666-15-R
- UPC: 075114235037
- PPN: T-B-J5-22666-15-R
- UNSPSC: 26121630
CAD
$2575.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
5 Point Junction, with two 200 Amp Bushing Well Interfaces and three 600 Amp Bushing Interfaces, 15kV, Right Parking Stand Only
Specifications
Additional Information
| Application | Suited for Subsurface, Vault or Padmount Applications and can be used for Sectionalizing, Looping, Tapping and Equipment Bypass. |
|---|---|
| Connection Type | Push-In |
| Material | EPDM Rubber and Stainless Steel Mounting Brackets. |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | Overall Length 24.5 inches, Width 6.75 inches. |
| Standards | ANSI/IEEE Standard 386 |
| Brand / Label | Elastimold |
|---|---|
| Effective Date | 20150331 |
| Mounting Type | Right Parking Stand. |
| Product Type | Multi-Point Junction - 5 Points |
| Special Functions | 4 inch Center Spacing. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
