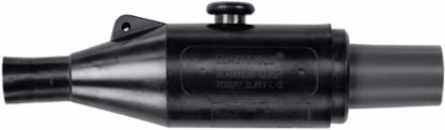

Thomas & Betts K151SP-B0240-S 15KV STRAIGHT PLUG W-SEALING
- MPN: K151SP-B0240-S
- UPC: 075114305389
- PPN: T-B-K151SP-B0240-S
- UNSPSC: 39121421
CAD
$536.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15kV, 200 Amp, Straight Plug, Cable Insulation .635-.905 inches, Aluminum Compression Lug, Conductor Size 1/0 Stranded/Compressed or 2/0 Compact/Solid. With Jacket Seal.
Specifications
Additional Information
- Application
- Designed to Terminate UD Cable having Concentric Neutral and Extruded instalation shielding.
- Color
- Black
- Effective Date
- 20160524
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL PLUG
- Size
- 2.55 inch wide x 8.81 inches long
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 15 to 25 kV
Brand / LabelElastimold
Current Rating200 A
IncludesStraight Receptacle Housing, Receptacle Pin Connector, Tube Lubricant, Installation Instruction and Crimp Chart
MaterialHousing - EPDM Rubber
Product TypeDeadbreak Straight Plug
Special FunctionsFully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for ground wire connection. Wide cable range with minimum number of sizes. No Test Point.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
