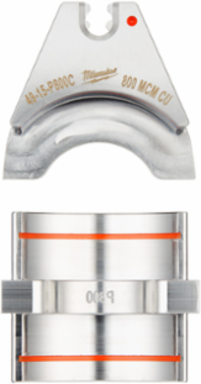

Milwaukee Tool 49-15-P800C 15T Crimper Die for 800 MCM Copper, Stainless Steel Finish

  • MPN: 49-15-P800C
  • UPC: 045242002832
  • PPN: MIL-49-15-P800C
  • UNSPSC: 27112820

CAD

$363.84

/ EA

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The MILWAUKEE® 15T 800 MCM Cu P-Die is designed for the M18™ FORCE LOGIC™ 15T Crimper to deliver the Easiest Way to Crimp. The crimper dies produce cULus classified crimps according to the UL 486A-B classification standards for #8 - 1000 MCM Copper and Dual Rated connectors across multiple manufacturers. They feature vivid wire size markings, industry-standard color markings, and imprint wire size onto the connector. Commercial electricians will benefit from the hydraulic crimper dies' ease of use and easy post-crimp inspection. The dies are designed for use with the M18™ FORCE LOGIC™ 15T Crimper (2879-20) and are physically compatible with all industry-standard 15T P-Style die crimpers.

Features

  • Creates UL 486A-B classified crimps when used with M18™ FORCE LOGIC™ 15T Crimper
  • 100% Inspected for Critical Dimensions & Serialized: Ensures Crimp Quality
  • Vivid Color Coding: Easiest Selection
  • Stainless Steel Finish: Protects against Corrosion
  • Wire Size Marked on Each Die: Easy Identification
  • Die Size Pressed into Connector, matches wire size: Eliminates cross Referencing

Specifications

Additional

Compatibility Wire Size#8 - 1000 MCM Copper
Die Type15T Crimper Die
Color / FinishSilver
UL ListedYes
Country of OriginChina
Die Size800 MCM
MaterialStainless Steel
ComplianceUL 486A-B
Brand / Model Compatibility2879-20, 2879-22
