Burndy BD18N Flexible Copper Braid Jumper 18 Inch Length, 0.94 Inch Pad Width, 0.56 Inch Hole Size
- MPN: BD18N
- UPC: 781810807224
- PPN: BUR-33284K
CAD
$216.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

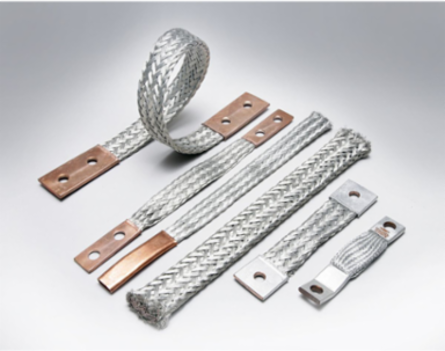

Flexible Copper Braid, 18 in L, Flexible copper braid jumpers designed to take up linear expansion and contraction.
Documentation & Downloads
Specifications

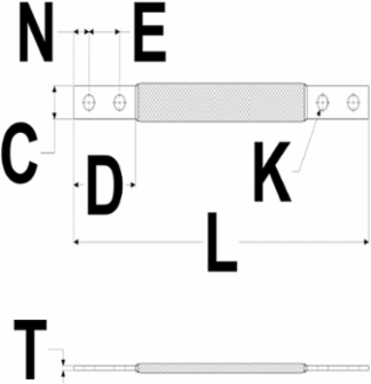

Dimensions
| Dimension - D inch | 3.00 in |
|---|---|
| Dimension - Hole Size inch | 0.56 in |
| Dimension - Length Overall inch | 18.00 in |
| Dimension - Pad Width inch | 0.94 in |
| Dimension - Hole Size fraction | 1/2 |
|---|---|
| Dimension - L Length Overall mm | 457 mm |
| Dimension - N inch | 0.62 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL467 |
| UL Listed | Yes |
General
| Application | Flexible copper braid jumpers designed to take up linear expansion and contraction |
|---|---|
| Material | Copper |
| Physical Attribute - Number of Braids | 1 |
| Plating Type | Tin |
| Type | B, Flexible |
| UPC 12 Digit | 7818108072244 |
| Connector Type | Braid |
|---|---|
| Material - Ferrules | Y |
| Plated | Y |
| Sub Brand | BRAID JUMPER |
| UPC | 781810807224 |
Electrical Ratings
| Rating - Indoor Amperage | 190 |
|---|
| Rating - Outdoor Amperage | 225 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
