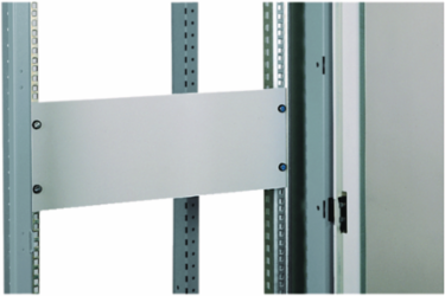

Schneider Electric NSYCRTM1U Actassi - 19" plain plate - 1U - steel - RAL7035 - 15/10mm
- MPN: NSYCRTM1U
- PPN: SCH-NSYCRTM1U
- UNSPSC: 39121302
CAD
$15.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Front panel fixed to the 19-inch uprights for cable management. Steel front panel, RAL7035, light grey. 1U high panel.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy, United States |
|---|---|
| Width | 18.31 in |
| Height | 1.75 in |
|---|
Physical Attributes
| Color | Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Application | multi-purpose, electronic application |
| Local Publishable Date | 2026-04-18 |
| Weee Scope | Out |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Fixing Mode | by 19" fixing element 19" uprights of rack |
| Mounting Location | on vertical uprights |
| Number Of Rack Unit | 1U |
| Product Or Component Type | 19" front panel |
| Returnability | No |
| Sustainable Packaging | No |
| Height Nominal | 44.45 mm |
| Width Nominal | 465 mm |
| Number Of Units 19" | 1 |
| Customs Code | 7326190080 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Material | sheet steel |
| Mounting Support | 19" rack, front or rear |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Actassi |
| Surface Finish | epoxy-polyester powder |
| Thickness | 1.5 mm |
| Height Useful | 44.45 mm |
| Width Real | 465 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Product Compatibility | Actassi enclosure, PanelSeT SF-S, PanelSeT SF-E, PanelSeT VDM, PanelSeT PLA |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
General Attributes
| Product Or Component Type | 19" front panel |
|---|
| Range Of Product | Actassi |
|---|
ETIM
| ETIM 8 | EC002519 |
|---|---|
| ETIM 10 | EC002519 |
| ETIM 9 | EC002519 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
