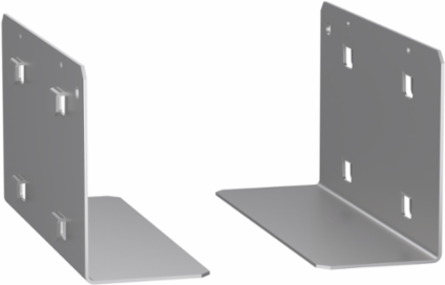

Schneider Electric NSYGB140 19 Inch 2U Fixed Slide - 15 kg Load, Steel, Zinc Coated
- MPN: NSYGB140
- PPN: SCH-NSYGB140
- UNSPSC: 39121327
CAD
$12.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2U partial fixed 19-inch slide fixed by attachment on the front or rear 19-inch uprights, made of treated steel and with an acceptable load of 30kg. Without heel height.
Features
- Fixing by attachment on the front or rear 19" uprights
- Set of 2 slides
- Material: treated steel
- Acceptable load: 30 kg.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|---|
| Width | 5.51 in |
| Height | 3.5 in |
|---|---|
| Depth | 44 mm |
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Application | electronic application, multi-purpose |
| Local Publishable Date | 2025-07-10 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Composition | fixing elements2 rails |
| Material | steel |
| Number Of Rack Unit | 2U |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Sustainable Packaging | No |
| Height Nominal | 88.9 mm |
| Width Nominal | 140 mm |
| Number Of Units 19" | 2 |
| Customs Code | 7326908688 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Fixing Mode | by clips 19" uprights of rack |
| Mounting Support | 19" rack, front or rear |
| Permanent Permissible Load | 15 kg |
| Product Or Component Type | fixed slide |
| Range Of Product | Actassi |
| Surface Finish | zinc coated |
| Thickness | 1.2 mm |
| Height Useful | 88.9 mm |
| Width Real | 140 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Product Compatibility | PanelSeT SF-S, PanelSeT SF-E, PanelSeT VDM, PanelSeT PLA |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1001003EN |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP1001003EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | fixed slide |
|---|
| Range Of Product | Actassi |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|---|
| ETIM 10 | EC002620 |
| ETIM 9 | EC002620 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
