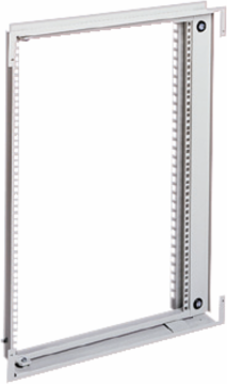

Schneider Electric NSYVDM11UP 19" swing chassis 11U Spacial

19" swing chassis 11U Spacial
  • MPN: NSYVDM11UP
  • PPN: SCH-NSYVDM11UP

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$292.55/ EA

    Description

    19" swing chassis 11U Spacial

    Specifications

    Specifications

    Rack Type
    swing
    Range Compatibility
    Spacial Spacial S3D || Spacial Spacial S3X || Spacial Spacial VDM || Spacial Spacial CRN
    Product Or Component Type
    19" rack
    Device Composition
    fixing elements || 1 19" swing chassis || 2 lock
    Range
    Spacial
    Enclosure Nominal DimensionsH: 600 mm W: 600 mm D: 200 mm || - H: 600 mm W: 600 mm D: 250 mm || - H: 600 mm W: 600 mm D: 300 mm || - H: 600 mm W: 600 mm D: 400 mm
    Accessory / Separate Part Categorymounting accessory
    Number Of Units 19"11
    Device Applicationmulti-purpose || electronic application
    Mounting Locationfront of enclosure

    Complementary

    Width
    nominal 600 mm
    Fixing Mode
    by fixing element
    Surface Finish
    epoxy-polyester powder
    Colour
    grey RAL 7035)
    Lock Type
    lock with 3 mm double bar insert
    Depth
    630 mm
    Heightnominal 600 mm
    Materialchassis steel
    Opening Of The 19" Racksreversible 120 °
    Enclosure/Cubicle Descriptionwall-mounted enclosure
    Net Weight5.41 kg
    Permanent Permissible Load3 kg per unit

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Rohs Exemption Information
    Yes
    Environmental Disclosure
    ENVPEP100104EN
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Circularity ProfileN/A
    Mercury FreeYes
    Sustainable Offer StatusGreen Premium product
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    Contractual warranty

    Warranty
    18 months
