On-Q AC1902 19-inch 2U Hinged Wall Mount Bracket AC1902
- MPN: AC1902
- UPC: 804428008224
- PPN: P-S-AC1902
- UNSPSC: 31162307
CAD
$80.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

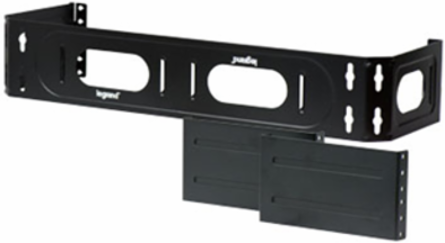

This hinged wall mount bracket is 19 inches wide by 2 rack mount spaces high and comes with 2 switch extenders to support mounting of active data networking products.
Features
- Mounts any panel sized at 2 rack mount spaces high or less
- Includes two 4-inch switch extenders to support mounting of active data products
- Unique design supports mounting in corner of room
- Stack multiple brackets to support more products
Specifications
Buy American Act Compliance
| Country Of Origin | CHINA |
|---|
Technical Information
| Material | Cold Rolled Steel, 1.5mm thick |
|---|---|
| Supported Standards | cULus |
| Mounting | 8 x 10mm slotted bracket mounting holes, 12 x 5.5mm component mounting holes |
|---|---|
| Equipment Type | Network Structured Wiring |
Dimensions
| Height (US) | 3.75" |
|---|---|
| Width (US) | 7.65" |
| Length (US) | 20" |
|---|---|
| Hole Size | 8 x 10mm, 12 x 5.5mm |
General Info
| Color | Black |
|---|---|
| Special Features | Steel Rackmount Bracket |
| Finish | Black painted |
|---|
Listing Agencies/Third Party Certifications
| RoHS | Yes |
|---|---|
| cUL Standard | Yes |
| cULus | Yes |
|---|---|
| UN SPSC | 31162307 |
Assembly/Installation Information
| Mounting Points | 8 slotted, 12 round mounting holes |
|---|
