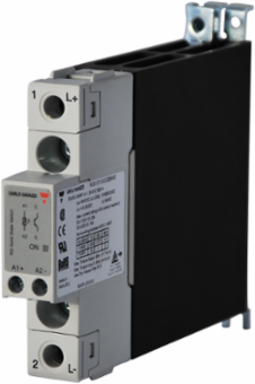

Carlo Gavazzi RGC1A60D20KKE Solid State Contactor 600V 23A AC, DIN Rail Mount, Zero Cross
- MPN: RGC1A60D20KKE
- PPN: CLG-RGC1A60D20KKE
CAD
$95.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Solid State Contactor 600V 23A AC, DIN Rail Mount, Zero Cross
Documentation & Downloads
Specifications
Key Specifications
| Control voltage DC | Min.4-Max.32 |
|---|---|
| Operating voltage | Min.42-Max.660 |
| Rated current AC-53a | 5 |
| Modular version | Yes |
| With approval according to UL | Yes |
| Wall mounting/direct mounting | Yes |
| Zero switching | Yes |
| Instant On switching | No |
| Soft start switching | No |
| Output switching mode | Zero cross |
| Control type | DC-Digital |
| Rated output voltage | 600 |
| Type of output | AC |
| Industry 1 | Plastic Machinery |
| Industry 2 | Plastic Machinery |
| Industry 3 | Plastic Machinery |
| Industry 4 | Plastic Machinery |
| Industry 5 | Plastic Machinery |
| Industry 6 | Plastic Machinery |
| Industry 7 | Plastic Machinery |
| Industry 8 | Food Beverages Equipment |
| Industry 9 | Food Beverages Equipment |
| Industry 10 | Food Beverages Equipment |
| Industry 11 | Packaging, Filling, Wrapping Machinery |
| Industry 12 | Packaging, Filling, Wrapping Machinery |
| Industry 13 | Packaging, Filling, Wrapping Machinery |
| Industry 14 | HVAC&R Equipment |
| Industry 15 | HVAC&R Equipment |
| Item Code 1 | RGM25 |
| Product Main Family Group | DIN rail mount |
| Zero cross | Yes |
| Peak | No |
| Proportional | No |
| Rated current range | 11-25 |
| Voltage type for actuating | DC |
|---|---|
| Rated current AC-51 | 23 |
| Number of poles | 1 |
| Switching at zero-crossing | Yes |
| Rail mounting possible | Yes |
| Peak switching | No |
| DC switching | No |
| Proportional switching | No |
| Function | Solid state contactor |
| Typology | DIN rail mount |
| Power connection | Screw with captive clamp |
| Rated current category | 11-25 |
| Rated current category | 11-25 A |
| Application 1 | Injection moulding machines |
| Application 2 | Extrusion machines |
| Application 3 | PET blow Moulding machines |
| Application 4 | Blow moulding |
| Application 5 | Blown film extrusion |
| Application 6 | Thermoforming machines |
| Application 7 | Dryers and dosing systems |
| Application 8 | Cooking equipment, bakery ovens |
| Application 9 | Food/beverages vending machines |
| Application 10 | Coffee machines |
| Application 11 | Food packaging machines |
| Application 12 | Wrapping and sealing machines |
| Application 13 | Heat shrink food packaging |
| Application 14 | Refrigeration systems, chillers |
| Application 15 | Electric heater batteries |
| Product Main Family | Solid State Relay |
| Web Class | DIN rail mount |
| Instant on | No |
| DC | No |
| Soft start | No |
