Tripp Lite B021-000-19-HD 1U Rack-Mount Console with 19 Inch LCD, DVI-I, USB 2.0 Port, 1366 x 768 Resolution
- MPN: B021-000-19-HD
- UPC: 037332186768
- PPN: TRP-B021-000-19-HD
CAD
$2715.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

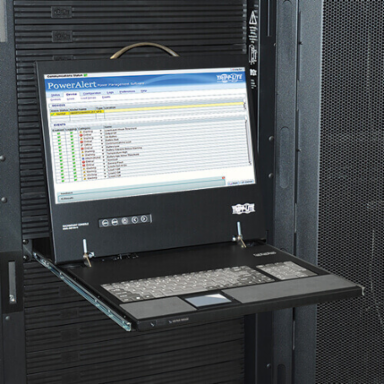

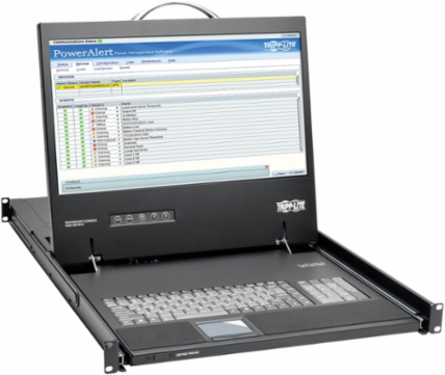

1U Rack-Mount Console with 19 Inch LCD, DVI-I, USB 2.0 Port, 1366 x 768 Resolution
Features
- Rack-mount console (19” LCD monitor, keyboard and touch pad) in a space-saving, 1U rack-mountable housing
- DVI-I port supports both digital and analog video, with a maximum resolution of 1366 x 768

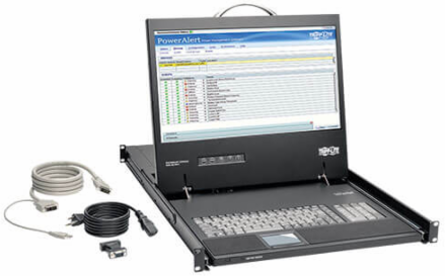

- Includes a DVI to VGA adapter for the connection of a VGA server or KVM switch
- Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive or CAC card reader
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Screen Size
- 19 in
- Input Voltage
- 100-240V AC
- Operating Temperature Range
- 0 to 40 °C (32 to 104 °F)
- Power Consumption
- 30W (line mode), 5W (standby)
- Video Port
- DVI-I (digital and analog)
- Relative Humidity
- 0 to 80%, Non-Condensing
- Computer Interface
- USB keyboard and mouse
- Dimensions (H x W x D)
- 1.7 x 18.8 x 29.1 in
- Mounting
- Rack-mountable (1U, fits 19 in. rack)
- Certifications
- UL 60950-1, CAN/CSA, FCC Part 15 Class A, CE, IEC 60950-1, RoHS, REACH
Resolution1366 x 768 @ 60Hz
Input Current120V (1.2A) / 230V (0.7A)
Storage Temperature Range-20 to 60 °C (-4 to 140 °F)
USB PortUSB 2.0 pass-through
Input Frequency50/60Hz
Number of Users1
Monitor InterfaceDVI-I Single-Link
Weight27.6 lbs (12.52 kg)
MaterialSECC Steel (Electrogalvanized, Cold Rolled, Coil)
ColorBlack
