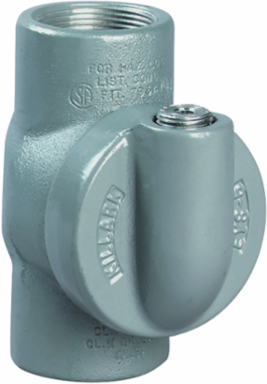

Killark EYS-7M 2-1/2 Inch EYS Seal Fitting Iron, Female/Female, Class I Hazardous Location
Killark EYS-7M 2-1/2 Inch EYS Seal Fitting Iron, Female/Female, Class I Hazardous Location
- MPN: EYS-7M
- UPC: 783936111834
- PPN: HBL-EYS-7M
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$661.68/ EA
Description
2-1/2" EYS Seal Fitting Iron, Female/Female
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EYS-T style supplied with removable close nipples
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 6.250 in
- Application
- Class I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
- Finish
- Powder Epoxy Paint
- Hub Size
- 2-1/2"
- Special Features
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
- Width
- 6.25 in
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- EYS SEAL FTG FE 2-1/2" FEMAL/FEMAL
- Harmonization Code
- 7307110030
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 8.66
- Material
- Iron
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions6 in x 6.25 in x 10.25 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ColorGray
Height10.25 in
Length6 in
TypeSealing Fitting
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesEYS Series
Carton - SCC-14 Next Lower Level Sub Pack00783936111834
Certifications
- EU RoHS Indicator
- Contact Manufacturer
