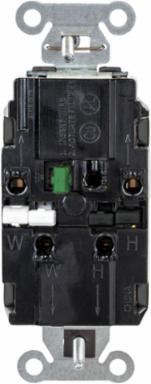

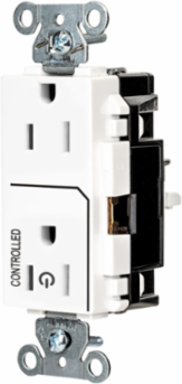

Hubbell Wiring Device-Kellems DR15STC1W 1/2 Controlled EdgeConnect™ 15A Decorator White Duplex Receptacle
- MPN: DR15STC1W
- UPC: 783585757315
- PPN: HBL-DR15STC1W
- UNSPSC: 39121406
CAD
$19.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1/2 Controlled EdgeConnect™ 15A Decorator White Duplex Receptacle. Straight Blade Device, 2-Pole 3-Wire, 125V, Commercial Grade, Screwless Termination/Spring Terminal
Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Simple color coded plungers for easy and quick wiring
- Use small screwdriver to lift plunger and rewire as needed
- Screwless termination for easier and faster installation.
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- UL Listed to UL498 File No. E2186;Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant
- Application
- Spring clamp terminal strengthens over time providing a more reliable connection.
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Standard
- UL Listed to UL498 File No. E2186;Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant
- Voltage Rating
- 125 V
- General Literature Asset 2 Display Text
- Leaders In Screwless Termination
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Style
- Decorator
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Current Rating
- 15 A
- Series
- EdgeConnect™ Series
- BOX SIZE
- 3.750x8.375x4.350 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585757315
- Case Weight
- 20.000 lb.
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Width1.625 in
Size3.28x1.58x1.38 in
ColorWhite
FlammabilityUL 94 V-2
Number of Poles2-Pole
Special FeaturesScrewless termination for easier and faster installation.
TypeControlled
General Literature Asset 1 Display TextEdgeConnect™ Technology
General Literature Asset 3 Display TextSNAPConnect® and EdgeConnect® screwless termination
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75 °C;Minimum (w/o impact) -40 °C
Class CodeA04
Harmonization Code8536698000
Sub Class CodeA04A060
MaterialThermoplastic/C
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Pallet Height42.000 in
Pallet Weight840.000 lb.
