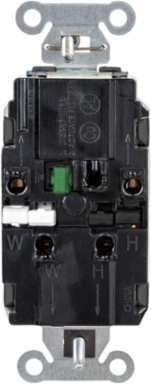

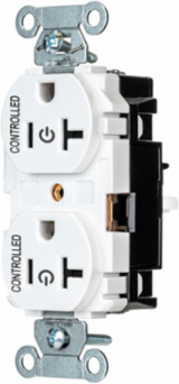

Hubbell Wiring Device-Kellems BR20STC2W 2/2 Controlled EdgeConnect™ 20A Flat Face White Duplex Receptacle
- MPN: BR20STC2W
- UPC: 783585757117
- PPN: HBL-BR20STC2W
CAD
$16.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2/2 Controlled EdgeConnect™ 20A Flat Face White Duplex Receptacle. Straight Blade Device, 2-Pole 3-Wire, 125V, Commercial Grade, Screwless Termination/Spring Terminal
Features
- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Simple color coded plungers for easy and quick wiring
- Use small screwdriver to lift plunger and rewire as needed
- Screwless termination for easier and faster installation.
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Width | 1.600 in |
| Size | 3.28x1.58x1.38 in |
| Voltage Rating | 125 V |
| General Literature Asset 2 Display Text | Leaders In Screwless Termination |
| Application | Spring clamp terminal strengthens over time providing a more reliable connection. |
| Nema Rating | 5-20R |
| Number Of Wires | 3-Wire |
| Style | Flat Face |
| Class Code | A04 |
| Harmonization Code | 8536698000 |
| Sub Class Code | A04A060 |
| Material | Thermoplastic/C |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.160 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Pallet Height | 50.500 in |
| Pallet Weight | 1158.000 lb. |
| Color | White |
|---|---|
| Industry Standard(s) | UL Listed to UL498 File No. E2186;Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant |
| Flammability | UL 94 V-2 |
| General Literature Asset 1 Display Text | EdgeConnect™ Technology |
| General Literature Asset 3 Display Text | SNAPConnect® and EdgeConnect® screwless termination |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75 °C;Minimum (w/o impact) -40 °C |
| Type | Controlled |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Current Rating | 20 A |
| Series | EdgeConnect™ Series |
| BOX SIZE | 3.800x8.400x12.000 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585757117 |
| Case Weight | 22.360 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
