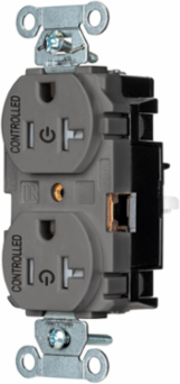

Hubbell Wiring Device-Kellems BR20STC2GYTR 2/2 Controlled EdgeConnect™ 20A Tamper Resistant Flat Face Gray Duplex Receptacle
- MPN: BR20STC2GYTR
- UPC: 783585757353
- PPN: HBL-BR20STC2GYTR
CAD
$26.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2/2 Controlled EdgeConnect™ 20A Tamper Resistant Flat Face Gray Duplex Receptacle. Straight Blade Device, 2-Pole 3-Wire, 125V, Commercial Grade, Screwless Termination/Spring Terminal
Features

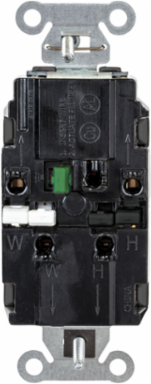

- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Simple color coded plungers for easy and quick wiring
- Use small screwdriver to lift plunger and rewire as needed
- Screwless termination for easier and faster installation.
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.600 in
- Size
- 3.28x1.58x1.38 in
- Voltage Rating
- 125 V
- General Literature Asset 2 Display Text
- Leaders In Screwless Termination
- Application
- Spring clamp terminal strengthens over time providing a more reliable connection.
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Style
- Flat Face
- Class Code
- A04
- Harmonization Code
- 8536698000
- Sub Class Code
- A04A060
- Material
- Thermoplastic/C
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Pallet Height
- 51.000 in
- Pallet Weight
- 1160.500 lb.
ColorGray
Industry Standard(s)UL Listed to UL498 File No. E2186;Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant
FlammabilityUL 94 V-2
General Literature Asset 1 Display TextEdgeConnect™ Technology
General Literature Asset 3 Display TextSNAPConnect® and EdgeConnect® screwless termination
Dielectric StrengthWithstands 2,000V minimum
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75 °C;Minimum (w/o impact) -40 °C
TypeControlled
Freight Class Code06168002
Image Actual Or RepresentativeA
Current Rating20 A
SeriesEdgeConnect™ Series
BOX SIZE3.800x8.400x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585757353
Case Weight22.410 lb.
Pallet Length48.000 in
Pallet Width40.000 in
