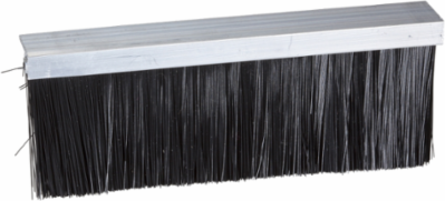

Schneider Electric NSYBCE8 Brush Gasket for 800 mm Electrical Enclosure, Set of 2, Clipped Fixing Mode
- MPN: NSYBCE8
- PPN: SCH-NSYBCE8
CAD
$62.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial SF brush flexible cable entry gaskets. 800 mm enclosure. Cable management accessory. Multi-purpose application. 25 mm. Cable gland plate mounting support. Clipped fixing mode. 1 or 2 cable entries. 2 Gaskets per set.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, France
- Width
- 28.94 in
Height2.76 in
Depth25 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase A4
- 0.082004269, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.094458681, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-04-18
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1848
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cable Entry
- 1 or 2 entries
- Device Composition
- 2 gasket
- Fixing Mode
- clipped
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Accessory Separate Part Category
- cable management accessory
- Warranty In Months
- 18
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 70 mm
- Width Nominal
- nominal: 800 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End Of Life Phase C1 To C41 kg CO2 eq., 1.001461079
Carbon Footprint Of The Manufacturing Phase A1 To A32 kg CO2 eq., 1.851020466
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Energy Efficiency OptimizedFalse
Mounting Supportcable gland plate
Product Or Component Typebrush gasket
RangePanelSeT
Software Versionv5.9.4
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Silicone FreeNo
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Height Useful70 mm
Width Realreal: 735 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- No
- Environmental Disclosure
- ENVPEP1109023EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint3.028944496
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- brush gasket
ETIM
- ETIM 8
- EC000211
ETIM 9EC000211
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
