Fluke Fluke CV200 Fluke CV200 ClirVu® 50 mm (2 in) Infrared Window Fluke CV200

MPN: Fluke CV200
UPC: 095969667067
PPN: FLU-FLUKE-CV200

$620.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

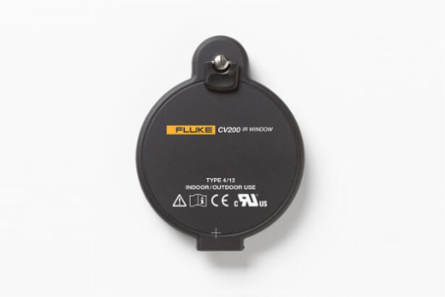

Fluke CV200 ClirVu® 50 mm (2 in) Infrared Window Fluke CV200

Features

One technician
One hole with standard Greenlee® punch
Panel door does not need to be removed
Grounds instantly to metal enclosure with patent-pending AutoGround™ process
Maintains panel arc test ratings up to 63kA when properly installed
NFPA 70E processes significantly reduced due to less work permit requirements
Faster and more comfortable inspections because full PPE is often not required
Reduce the risk of arc-flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance
CV200 is Torture Tested™ to the highest arc blast test ratings IEEE C37.20.7: 63 kA Arc tested at KEMA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14-13:2012, and CE
Convenience of both quick turn or security keyed access
Installs and grounds in less than 5 minutes
Save time with quick and easy installation with the CV Series – 5 minutes or less.
Work more efficiently with Fluke ClirVu® CV200 50 mm (2 in) Infrared Windows

Documentation & Downloads

Specifications

General Specifications

Size	50 mm (2 in)
NEMA environment type	Type 4/12 (indoor/outdoor)
ClirVu® optic	Yes
Compatible with all Fluke cameras	Yes
Cover and fastener permanently attached	Yes
Hand turn and security key door latch options	Yes
Short/Mid/Long-wave IR and UV capable	Yes

Voltage range	Any
AutoGround™	Yes
Operating temperature	-40°C to +232°C (-40° F to +450°F) and +260°C (500°F) intermittent
Jam nut locking system	Yes
Single-hole install	Yes
Visual inspection and fusion capable	Yes
