Schneider Electric NSYSFTB16 Lifting Bar Set, 1600 mm Length, Steel, Max Load 2000 kg

MPN: NSYSFTB16
PPN: SCH-NSYSFTB16
UNSPSC: 39121302

$969.02

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

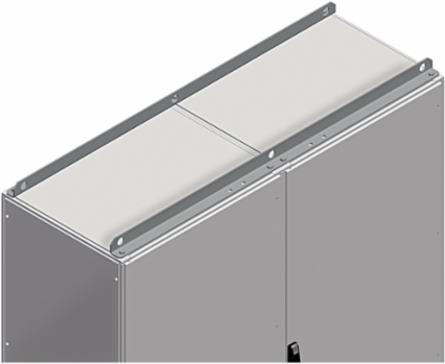

Spacial SF lifting and transportation bars. Length 1600. To be mounted across adjacent enclosures, in the axis of the uprights, using M12 screws. Steel made, galvanized finish. Set of 2.

Features

Set of bars for lifting and transporting enclosures suites.
They are fixed to the structure of the enclosure, in the axis of the uprights.
Material: Steel

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France
Length	62.8 in

Height	2.36 in
Depth	60 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	2 lifting bars, fixing elements
Local Publishable Date	2026-02-24
Weee Scope	Out
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Diameter	32 mm
Fixing Mode	by screws M12
Mounting Location	enclosure top
Permanent Permissible Load	2000 kg
Product Or Component Type	lifting bar
Range	PanelSeT
Surface Finish	zinc coated
Height Nominal	60 mm
Length Total	nominal 1600 mm
Accessory / Separate Part Category	lifting accessory
Customs Code	7326908688

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Energy Efficiency Optimized	False
Material	steel
Mounting Support	directly in the axis of the uprights
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	No
Sustainable Packaging	No
Height Useful	60 mm
Length Useful	real 1595 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
