Shield-Kon GSC287 2-PC OUTER SLV CONN BLUE I.D. 0.287

2-PC OUTER SLV CONN BLUE I.D. 0.287

Shield-Kon GSC287 2-PC OUTER SLV CONN BLUE I.D. 0.287

MPN: GSC287
UPC: 786210813950
PPN: T-B-GSC287
UNSPSC: 39121432

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.86/ EA

Loading add to cart quantity...

Description

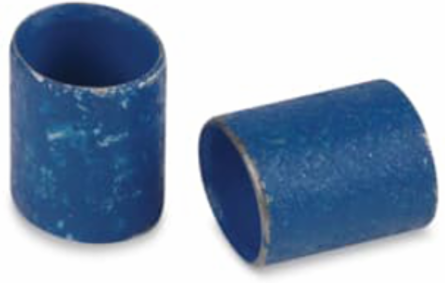

Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .287 Inches/7.29mm, Outer Diameter .327 Inches/8.30mm, Color Blue, Soft Bronze, Tin Plated

Specifications

Additional Information

Brand / Label: Sta-Kon

Effective Date: 19680516

Product Name: STA-KON AND CATAMOUNT TERMINAL

Special Functions: Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications.

ColorBlue

MaterialSoft Bronze

Product TypeTwo-Piece Outer Sleeve Connector

Sub Brand / LabelShield-Kon

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4603 >> Electrical terminals
