Shield-Kon

Shield-Kon GSC375 2-PC OUTER SLVE CONN YEL I.D. 0.375

2-PC OUTER SLVE CONN YEL I.D. 0.375
  • MPN: GSC375
  • UPC: 786210814018
  • PPN: T-B-GSC375
  • UNSPSC: 39121432

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.93/ EA

Description

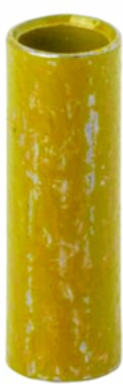

Two Piece Outer Sleeve Connector for Hexagonal Range, Length 1/4 Inch/6.4mm, Inner Diameter .375 Inches/9.53mm, Outer Diameter .406 Inches/10.31mm, Color Yellow, Soft Bronze, Tin Plated

Specifications

Classifications

WEEE Category
Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4603 >> Electrical terminals

Additional Information

Brand / Label
Sta-Kon
Effective Date
19680516
Product Name
STA-KON AND CATAMOUNT TERMINAL
Special Functions
Shielded cable grounding system made of 2 cylindrical sleeves (inner sleeve + outer sleeve), for solderless crimp connection. Outer sleeve for the Hexagonal Range (the outer sleeve is crimped with a hand tool and the result is a hexagonal-shaped crimp), for grounding shielded and coaxial cables. The sleeves are color coded according to their size. Millions of installations in communications, aerospace, electronic, telephone, radio and TV applications.
ColorYellow
MaterialSoft Bronze
Product TypeTwo-Piece Outer Sleeve Connector
Sub Brand / LabelShield-Kon

Ordering

Country of Origin
United States (US)
