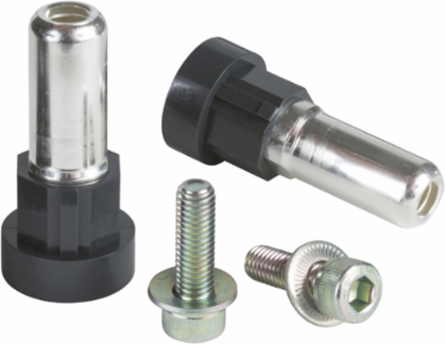

Schneider Electric LV432518 Power connections, ComPacT NSX400/630 plug in kit, set of 2 parts
- MPN: LV432518
- PPN: SCH-LV432518
- UNSPSC: 39121432
CAD
$292.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
It is a power connection for Compact NSX400/630 3P plug-in kit. A plug-in configuration is made by adding a plug-in kit to a fixed device. This power connection is part of the LV432538 plug-in kit. This power connection is sold by set of 3 parts.
Features
- Schneider Electric green signature style for the entire ComPacT range
- Estimated 40% reduction of wiring time for panel builders
- Experience easier installation thanks to a new ergonomic front-plate design
- Gain the confidence that all auxiliaries are on the right spot
- Ergonomic new toggle for easier breaker manual operation
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 229 g |
|---|
Complementary Attributes
| Line Rated Current | 630-630 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Range Of Product | ComPact NSX400...630, ComPact NSX400...630 DC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.3 kg CO2 eq., 0.33487811036448795 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 1 kg CO2 eq., 1.2114477703115456 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Exclusion Rationale | Product/component not in scope – not electric/electronic device |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1902 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Or Component Type | power connections |
| Range | ComPacT |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 2 kg CO2 eq. |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Product contains halogen above thresholds |
| Functional Unit Description | To allow rapid and easy installation or extraction of a ComPacT NSX 400-630A circuit breaker for 20 years. Nominal current for this analysis is 630A.& 10& 10The product offers three positions, with transfer from one to the other after mechanical unlocking: connected, disconnected and removed. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 60 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 0.03663067399714926, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.027948631643249847, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-07-10 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 2 |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2022-01 |
| Accessory / Separate Part Category | connection accessory |
| Customs Code | 8538908180 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2309033EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 1.6109051863164328 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2309033EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Range Of Product | ComPact NSX400...630, ComPact NSX400...630 DC |
|---|
| Product Or Component Type | power connections |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|---|
| ETIM 10 | EC002498 |
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
