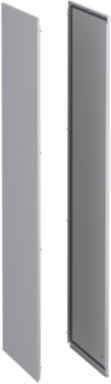

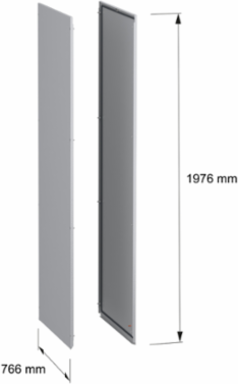

Schneider Electric NSY2SPN208 Side Panels for Electrical Enclosure 2000mm x 800mm, Steel, Set of 2
- MPN: NSY2SPN208
- PPN: SCH-NSY2SPN208
CAD
$697.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Enhance the functionality and security of your electrical enclosure with the Schneider Electric NSY2SPN208 side panels. Crafted from durable steel, this set of two panels is specifically designed to fit enclosures measuring 2000mm x 800mm, ensuring a snug and reliable fit. These side panels not only provide robust protection for internal components but also facilitate efficient installation and maintenance, making them an essential addition for any electrical setup requiring enhanced safety and accessibility.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France, United States
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- compartmentalised application, multi-purpose, Prisma application
- Carbon Footprint Of The Distribution Phase [A4]
- 7.963931477, 8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 11.27501768, 11 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- steel
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2301018EN
- Pep Verification Date
- 2023-07-31
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- nominal: 2000 mm
- Accessory / Separate Part Category
- enclosure accessory
- Package Weight(Lbs)
- 42.000 kg
- Take-back
- No
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -31160.353
- Customs Code
- 9403999045
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions- H: 2000 mm D: 800 mm, - H: 2000 mm D: 800 mm, - H: 2000 mm D: 800 mm, - H: 2000 mm D: 800 mm, - H: 2000 mm D: 800 mm, - H: 2000 mm D: 800 mm
Carbon Footprint Of The End-of-life Phase [C1 To C4]95 kg CO2 eq., 95.13585535
Carbon Footprint Of The Manufacturing Phase [A1 To A3]108 kg CO2 eq., 108.0277345
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2507020EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2306
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Compositionfixing elements2 side panel
Fixing Modeby screws captive - from the outside of enclosure
Mounting Locationsides of enclosure
Product Or Component Typeside panel
ReturnabilityYes
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint222 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %97
Width Nominalnominal: 800 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle10824.1036
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Circularity Profile
- ENVEOLI2507020EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2301018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint222.402539
Environmental DisclosureENVPEP2301018EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-07-31
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- side panel
ETIM
- ETIM 8
- EC002524
ETIM 9EC002524
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
