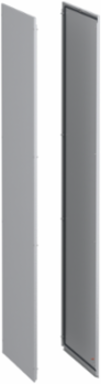

Schneider Electric NSY2SPN228 PanelSeT SFN Side Panels for Electrical Enclosure H2200 D800mm, Set of 2

MPN: NSY2SPN228
PPN: SCH-NSY2SPN228

$663.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Enhance the capability of your electrical enclosure with the Schneider Electric NSY2SPN228 PanelSeT SFN Side Panels. Crafted for robust performance, this set of two side panels is designed to fit seamlessly with enclosures measuring H2200 x D800mm, ensuring a secure and reliable addition to your setup. With a focus on durability and compatibility, these side panels offer essential support for organizing and protecting electrical components, making them an invaluable asset for various industrial applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Spain, France

Physical Attributes

Color	Gray RAL 7035)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	- H: 2200 mm D: 800 mm, - H: 2200 mm D: 800 mm, - H: 2200 mm D: 800 mm, - H: 2200 mm D: 800 mm, - H: 2200 mm D: 800 mm, - H: 2200 mm D: 800 mm
Carbon Footprint Of The End-of-life Phase [C1 To C4]	105 kg CO2 eq., 105.3289827
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	120 kg CO2 eq., 119.6021347
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2507020EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2306
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Energy Efficiency Optimized	False
Material	steel
Product Availability	Stock - Normally stocked in distribution facility
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Pep Code	ENVPEP2301018EN
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal	nominal: 2200 mm
Accessory / Separate Part Category	enclosure accessory
Package Weight(Lbs)	46.500 kg
Warranty (In Months)	18
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]	11597.1013

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	8.817209849, 9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	12.48305529, 12 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2025-07-10
Stocking Flag	N
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	fixing elements2 side panel
Fixing Mode	by screws captive - from the outside of enclosure
Mounting Location	sides of enclosure
Product Or Component Type	side panel
Returnability	Yes
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	246 kg CO2 eq.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529).& 10X = Total number of enclosures or cabinets = 1& 10In = Rated current allowed in this enclosure (A) = 2500A& 10Voltage range = Low Voltage& 10Current type = AC/DC Current
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	97
Width Nominal	nominal: 800 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle	12138.5055
Customs Code	9403999045

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	246.2313825
Environmental Disclosure	ENVPEP2301018EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-07-31
Psr Version	PSR-0005-ed2-2016 03 29

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2507020EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2301018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
