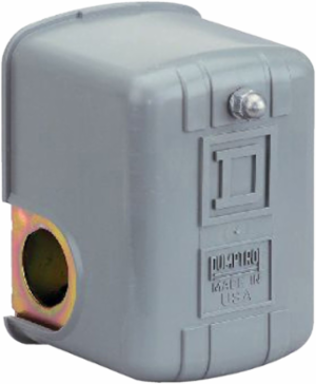

Telemecanique Sensors 9013FSG2J20U Pressure switch, 9013FS, pressure range 20 to 40 psi, adjustable differential, for water pump, quantity per set 1 (9013FSG2J20U)
- MPN: 9013FSG2J20U
- UPC: 785901559382
- PPN: TES-9013FSG2J20U
CAD
$41.73
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pressure switch, 9013FS, pressure range 20 to 40 psi, adjustable differential, for water pump, quantity per set 1 (9013FSG2J20U)
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Pressure sensor type | Electromechanical pressure switch |
|---|---|
| Pressure actuator | Diaphragm |
| Scale type | Adjustable differential |
| Local display | Without |
| Electrical connection | Slip-on connectors (load side terminals only) |
| Materials in contact with fluid | Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm |
| Operating position | Any position |
| Operating rate | 10 cycles/min |
| Terminals description ISO n°1 | L1-T1 L2-T2 |
| Controlled fluid | Fresh water (32-158 °F) |
|---|---|
| Pressure switch type of operation | Regulation between 2 thresholds |
| Setting | Internal |
| Contacts type and composition | 2 NC, snap action, DPST-DB, Form YY |
| Fluid connection type | 0.25 inch NPSF internal conforming to UL 508 |
| Material | Polypropylene: cover, noryl thermoplastic resin or equivalent: cover |
| Terminal block type | 4 terminals |
| Repeat accuracy | +/- 3 % |
Main
| Range of product | Pumptrol |
|---|---|
| Value of setting | 20...40 psi |
| Product specific application | Control electrically driven water pumps |
| Type of packing | Individual |
| Pressure sensor name | 9013FS |
|---|---|
| Electrical circuit type | Power circuit |
| Quantity per set | 1 |
Environment
| Standards | CE NSF ANSI 61 Annex G UL 508 |
|---|---|
| NEMA degree of protection | NEMA 1 conforming to UL 50 |
| Product certifications | CSA UL listed |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
