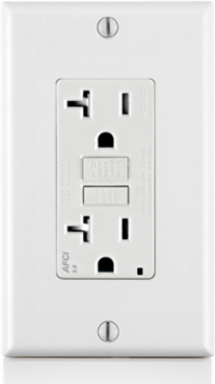

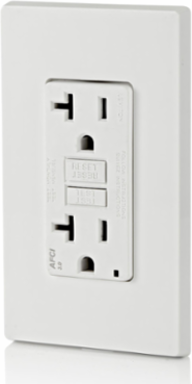

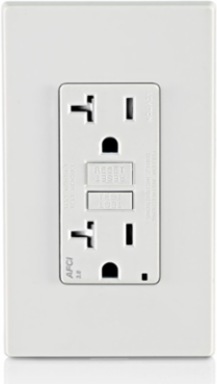

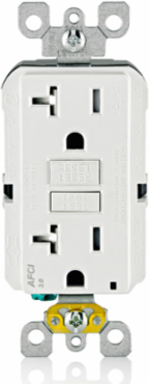

Leviton AFTR2-W 20 Amp Tamper-Resistant AFCI Outlet, 125 Volt, Duplex Receptacle with LED Indicator
Leviton AFTR2-W 20 Amp Tamper-Resistant AFCI Outlet, 125 Volt, Duplex Receptacle with LED Indicator
- MPN: AFTR2-W
- UPC: 078477574980
- PPN: LEV-AFTR2-W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$44.23/ EA
Description
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, AFCI Receptacle/Outlet, Monochromatic, back and side wired, nylon wallplate/faceplate, screws and self grounding clip included – White
Features
- Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with. This translates into greater acceptance of the technology and a more user-friendly platform
- Automatically tests the AFCI every time the RESET button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly
- By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
- A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices; a green LED indicator on the AFCI’s face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
- TR symbol indicates the device’s compliance with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities
- Device design reduces nuisance tripping
- Impact-resistant thermoplastic cover and body
- Superior resistance to electrical surges and over-voltages

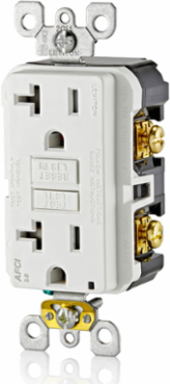

- Terminals allow for easy wiring options – back and side wire capable
- Compatible with all Decora® devices and wallplates; available in select colors
- Meets or exceeds UL requirements for tripping time on both series and parallel arcs
- The SmartlockPro® Outlet Branch Circuit (OBC) AFCI Receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home’s electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home’s electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National Electrical Code® in many areas of the home.
Specifications
Standards and Certifications
- ANSI
- C-73
- CSA Technical Information Letter No. M-02A
- Yes
- UL 498
- Yes
- UL1699.A
- File E342815
CSA C22.2 No. 42Yes
NOM057
UL Fed Spec WC-596Yes
Material Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Line Contacts
- Brass Triple-Wipe
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Yoke
- Zinc-Plated Steel
ClampsBrass
Grounding ScrewPlated Steel
Notesw/ Wallplate
Terminal Accom.14-10 AWG
Terminal ScrewsPlated Steel
Mechanical Specifications
- Amperage
- 20 A
- Feature
- Tamper-Resistant
- NEMA
- 5-20R
- Product ID
- Ratings are permanently marked on device
- Series
- AFTR2
- Strap Material
- Galvanized Steel
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Voltage
- 125 VAC
- Wire
- 3
ColorWhite
GroundingSelf-Grounding
Pole2
Screw Terminal Torque14-18 in-lbs
Standards and CertificationsUL/CSA, NEMA WD6, NEMA WD1
Terminal Accom.14-10 AWG
TerminationBack & Side
Warranty2-Year Limited
Specifications
- Country of Origin
- China
RoHS CompliantFalse
Product Features
- Type
- Duplex Receptacle
WallplateIncluded
Environmental Specifications
- Body Material
- Polycarbonate
- Face Material
- Thermoplastic
- Grounding Screw
- Plated Steel
- Notes
- w/ Wallplate
- Terminal Screws
- Plated Steel
ClampsBrass
FlammabilityRated V-2 per UL 94
Line ContactsBrass Triple-Wipe
Operating Temperature-35C to +66C
YokeZinc-Plated Steel
Electrical Specifications
- Dielectric Voltage
- Withstands 1250VAC per UL 1699A
- Operating Temperature
- -35C to +66C
FlammabilityRated V-2 per UL 94
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
Dielectric VoltageWithstands 1250VAC per UL 1699A
