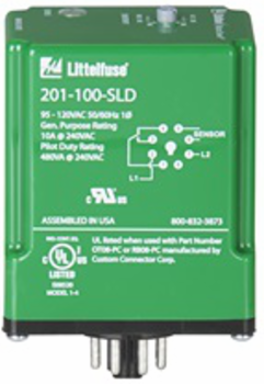

Littelfuse 201-100-SLD 201-100-SLD - 201 Pump Controls Series
- MPN: 201-100-SLD
- UPC: 079458990126
- PPN: LTF-201-100-SLD
CAD
$188.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
201-100-SLD - 201 Pump Controls Series
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage (V) | 110 to 120VAC nominal |
|---|---|
| Input AC Line Frequency (Hz) | 50/60Hz |
| Output Load Rating (VA) | Pilot Duty: 480VA @ 240VAC; General Purpose: 10A @ 240VAC |
| Sensitivity (Ohms) | 4.7k - 100kΩ |
| Termination Type | Torque (OT08-PC octal socket): 6 in-lbs; Wire: Stranded or solid 10-22AWG |
| Operating Temperature | -40° to 70°C (-40° to 158°F) |
| Humidity | 10-95% non-condensing per IEC 68-2-3 |
| Weight (lbs/g) | 0.7 lb. (11.2 oz. 317.5 g) |
| Maximum Input Power | 5W |
|---|---|
| Output Form | SPDT |
| Sense Voltage | 5vdc pulsed (probe) |
| Protection Class | NEMA 1 |
| Mounting Method | DIN rail or surface mount (plug-in to OT08-PC socket) |
| Storage Temperature (F/C) | -40° to 80°C (-40° to 176°F) |
| Dimensions | 1.75 in H x 2.38 in W x 4.13 in D (with socket) (44.5 x 60.3 x 104.8 mm) |
