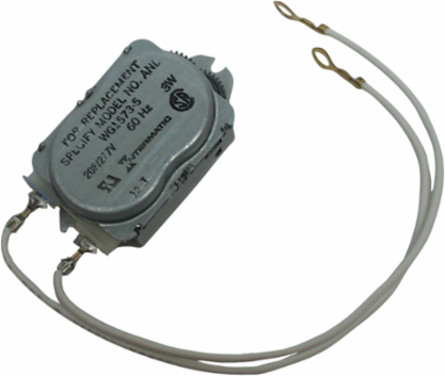

Intermatic WG1573-10D 208-277 VAC 60 Hz Motor for T102, T104, T106, T172, T174, WH40
- MPN: WG1573-10D
- UPC: 078275020122
- PPN: INT-WG1573-10D
- UNSPSC: 39122221
CAD
$79.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Sturdy time clock motor with a high torque. Fixed tab connectors easily slip over the timer connection poles for simple installation. Replacement motor is for use with the Intermatic T102, T104, T106, T172, T174, T176 and WH40 time switches. 208/277 volts and 60 hertz. The motor itself is labeled WG1573-5, but when the (2) 11-inch leads are attached the product then becomes WG1573-10D.
Features
- 208-Volt to 277-Volt motor
- 60 Hz rating
- Replacement motor for Intermatic T100 series, WH series, T170 series time switches
- Time switch series this motor is designed for industrial, commercial and residential applications, highest HP ratings in the industry for loads up to 40 Amp
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 208-277 VAC, 60 Hz
- Color
- Silver
- Marketing Description
- Sturdy time clock motor with a high torque. Fixed tab connectors easily slip over the timer connection poles for simple installation. Replacement motor is for use with the Intermatic T102, T104, T106, T172, T174, T176 and WH40 time switches. 208/277 volts and 60 hertz. The motor itself is labeled WG1573-5, but when the (2) 11-inch leads are attached the product then becomes WG1573-10D.
Warranty Period1-Year limited
ApplicationsIndoor Lighting Control;Timing/Scheduling ON/OFF
Country of OriginMexico
