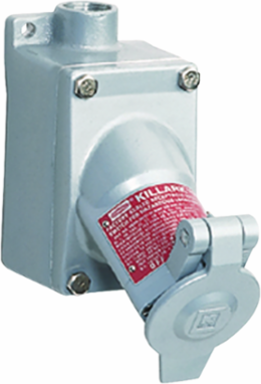

Killark UGR1-20231QW 20A 125V Acceptor Receptacle Quick-Wire, 1/2 Inch Dead End, Aluminum
- MPN: UGR1-20231QW
- UPC: 783936125022
- PPN: HBL-UGR1-20231QW
CAD
$1461.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20A 125V Acceptor Receptacle Quick-Wire, 1/2" Dead End
Features
- Factory sealed chamber in UGR receptacle contains switch’s arcing components.
- Spring loaded receptacle cover closes when plug is removed.
- Copper-free aluminum (less than 4/10 of 1%) alloy resists corrosion
- Electrostatically applied and baked powder epoxy/polyester finish
- ACCEPTOR® plugs conform to NEMA configurations, while it's “turn to engage” feature locks in plug and can be used to prevent accidental disengagement of critical equipment.
- Plugs for use with type S/SO/ST/STO heavy duty cord.
- The ACCEPTOR® UGP-QW / UGR-QW Plug and Receptacle system, with its unique patented design, is interchangeable with other NEMA bladed type explosion-proof and dust ignition proof devices. Plugs and receptacles may be used where bladed devices are needed in locations made hazardous by the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers and flyings. Quick-Wire terminal construction allows for easier installation than traditional methods, allowing for labor savings and higher customer satisfaction. Plug can serve to provide power for portable equipment used in both hazardous and non-hazardous areas. Factory sealed construction specifies that no additional external seals are required (except in Group B applications).
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- China
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
- Engineering Drawing 1 Display Text
- UGR Series Single Gang Dead End Engineering Drawing
- Nema Rating
- 3, 7(C, D), 9(F, G)
- Number Of Wires
- 3
- Class Code
- D35
- Freight Class Code
- 06168002
- MSDS Flag
- No
- Factory Sealed
- Factory Sealed
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- UGR Series
- BOX SIZE
- (in)
- NAICS Code
- 335931A102
Harmonization Code8536694020
Width3.130 in
Hub Size1/2"
Amperage Rating20 A
Number Of Poles2
TypeStraight Blade
Description - Invoice20A 125V ACCEPTOR RECPT QW, 1/2" DE
Image Actual Or RepresentativeR
Sub Class CodeD35D261
Hub PatternDead-End
Receptacle TypeDelayed Action
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936125022
