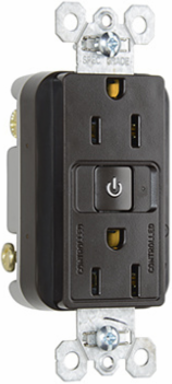

Pass & Seymour RF26352CH 20A 125V Wireless RF Half-Control Receptacle, Brown, 1.73 Inch Width
Pass & Seymour RF26352CH 20A 125V Wireless RF Half-Control Receptacle, Brown, 1.73 Inch Width
- MPN: RF26352CH
- UPC: 785007040173
- PPN: P-S-RF26352CH
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$139.48/ EA
Description
Energy savings and code compliance can be easily achieved through automatic plug load control via wireless RF communication between the Plug Load RF Signal Pack (RFP) and the Plug Load RF Receptacle.
Features
- Wireless control of plug load via RF communication and integral relay.
- Receptacle compliant with 2014 NEC, CA Title 24, and ASHRAE 90.1
- Product meets requirements of UL498B: Receptacles with integral switching means.
- Binding button on face also serves as a manual override.
- Simple, three-step binding process for wireless communication with RF Single Pack
- Corrosion-resistant plated steel strap locked into face and back body to resist pulling away from face/body assembly.
- Feed-thru capability allows for downstream control of multiple receptacles.
- .032 inch think, brass, triple-wipe power contacts for lasting retention.
- LED Indicator Light on the receptacle guides binding process and indicated power to the receptacle.
- Permanently molded face offers clear identification of controlled receptacle for end users.
- Auto-ground eliminates the necessity to terminate grounding conductor in device.
Specifications
Specifications
- Depth
- 1.25 in
- Color
- Brown
- Width
- 1.73 in
- Amperage
- 20.0 A
- Standard
- FEDSPEC
- Number of Wires
- 4.0
- Wire Size
- 14 - 10 AWG
- Features
- Half-Controlled
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
Height2.68 in
Product LinePass & Seymour
Country of OriginChina
Voltage125.0 V
FeaturesPlugload
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
NEMA Configuration Code5-20R
Wire Connection TypeScrew Terminals
Wire Connection TypeInternal Pressure Plates
