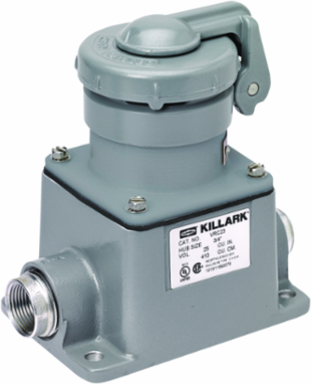

Killark UGRS-20231BC1QW 20A 125V Square Receptacle Quick-Wire, 1/2 Inch C-TYPE, Delayed Action
- MPN: UGRS-20231BC1QW
- UPC: 783936124629
- PPN: HBL-UGRS-20231BC1QW
CAD
$1107.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20A 125V Square Receptacle Quick-Wire with Breech-Lock Cap -, 1/2" C-TYPE
Features
- Available with Exclusive Breech-Lock Lid
- Patented lid notch allows for screwdriver, etc. to hold open lid for easier, two-hand installation.
- Factory Sealed Construction
- Copper-free aluminum (less than 4/10 of 1%) alloy resists corrosion
- Electrostatically applied and baked powder epoxy/polyester finish
- Dead Front Construction with Integral Switch – requires Hazardous Rated NEMA-Bladed Plug for operation
- Rotateable Design allows for installation flexibility
- The ACCEPTOR® UGRS-QW Hazardous Location Blade Style Receptacle complements the UGR-QW receptacle line. Used with ACCEPTOR® plugs, UGRS Receptacles utilize VERSAMATE® 30A mounting boxes. The rotateable design enables cover hinge location to be in most convenient position for application (may also be utilized with sheet metal enclosures which contain no arcing devices). UGRS-QW Panel Mounted Receptacles are classified for use with other NEMA bladed-type explosion-proof and dust ignition devices. Factory sealed construction specifies that no additional external seals are required (except in Group B applications).
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Division 2, Groups B, C, D;Class I, Zone 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
- Operating Temperature Celcius Max
- 40
- Operating Temperature Range Celcius
- -40°C to 40°C
- Amperage Rating
- 20 A
- Nema Rating
- 3, 4, 4X, 7(B, C, D), 9(F, G)
- Number Of Wires
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 20A 125V SQR RECPT QW BC, 1/2" C-TYPE
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Factory Sealed
- Factory Sealed
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- UGRS Series
- BOX SIZE
- (in)
- NAICS Code
- 335931A102
Width5.500 in
Hub Size1/2"
Operating Temperature Celcius Min-40 °C
Voltage Rating120-277 VAC
Frequency Rating50/60 Hz
Number Of Poles2
TypeStraight Blade
Class CodeD35
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeD35D261
Hub PatternFeed-Thru
Receptacle TypeDelayed Action
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936124629
