Killark UGFI202AD 20A 250VAC Portable GFCI Receptacle with Acceptor Plug and Circuit Protection
- MPN: UGFI202AD
- UPC: 783936074986
- PPN: HBL-UGFI202AD
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

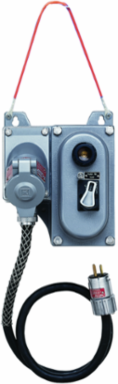

20A, 250VAC Portable GFCI Receptacle
Features
- No need to permanently alter existing installations
- Portable Unit can be temporarily hung using included strap near an existing receptacle wherever protection is required.
- Factory Sealed Unit.
- Acceptor® plug and cord set included with Adapter Unit. Cord is 36”.
- GFCI device also provides circuit protection, for connected apparatus, against current overload and short circuits.
- Acceptor® receptacles and plugs are intermateable with both Crouse-Hinds® ArkGard®2 and Appleton® U-Line® products.
- Amber pilot light provides indication that the receptacle is energized.
- Units can be Padlocked OFF for maintained safety.
- Fully gasketed GFCI compartment prevents moisture from damaging electronic components.
- Same high quality materials as the standard ACCEPTOR®.
- The GFCI protected ACCEPTOR® is the solution to OSHA’s requirements for GFCI protection when using portable equipment in hazardous and wet locations. For use with 125V, or 125/250V 15 or 20 amp receptacles without GFCI protection, the Adapter Unit provides GFCI and circuit protection to connected apparatus by simply being plugged into an existing receptacle.
Specifications
Key Specifications
- Country of Origin
- United States
- Voltage Rating
- 250 VAC
- Amperage Rating
- 20
- Class Code
- D35
- Freight Class Code
- 06168002
- Image Actual Or Representative
- R
- Sub Class Code
- D35D261
- UL File Number
- E91049
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936074986
- NAICS Code
- 335931A102
Hazardous Rating(s)Class 1, Division 2, Groups B, C, D;Class I, Zone 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
Weight14 lb.
ARRA CompliantContact Manufacturer
Description - InvoiceRECEPT ADAPT, 20AMP 2 POLE
Harmonization Code8537109170
MSDS FlagNo
CSA File NumberLR14667
SeriesUGFI Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Total Units1 EA
