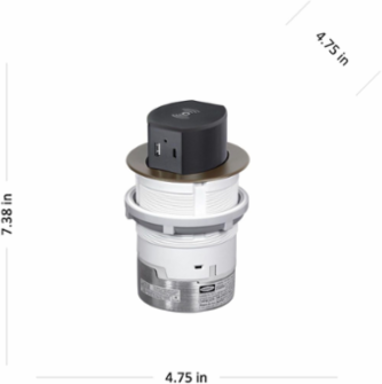

Bryant RCT620BZE 20A Tri-Power Surface Mount Counter Receptacle, Bronze, 4.75 Inch x 7.38 Inch
- MPN: RCT620BZE
- UPC: 883778310584
- PPN: HBL-RCT620BZE
CAD
$559.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20A Tri-Power Surface Mount Counter Receptacle, Bronze, 4.75 Inch x 7.38 Inch
Specifications
Additional
- Amperage
- 20 Amp
- Circuit Rating
- 20 Amp non-feed through
- Qi Wireless Charging Power
- 7.5 Watt
- USB C Port Power
- 18 Watt at 9 Vdc
- Operating Temperature
- -40 C to 75 C
- Width
- 4.75 in
- Size
- 4.75 in x 4.75 in x 7.38 in
- Number of Poles
- 2
- Mounting Type
- In Kitchen Counter Top, Surface Mount
- Material
- 220 Meunt
- Material - Main Body
- Engineered Thermoplastic PBT
- Material - Water Seals
- Elastomers and Silicon
- Flammability Rating
- UL 94V-2
- Country of Origin
- China
Voltage125 Volt
USB PortsType A and C
USB A Port Current5 Amp at 5 Vdc
Dielectric Voltage Withstand2,000 Volt minimum
Length4.75 in
Height7.38 in
Number of Wires3
Number of OutletsCombo Single/USB
NEMA Rating5-20R
Material - Cover and FlangeSilicone, Die Cast Aluminum
Material - Wiring ChamberDie Cast Aluminum
FinishBronze
ComplianceUL Listed for countertop installation, UL498, Section 147
