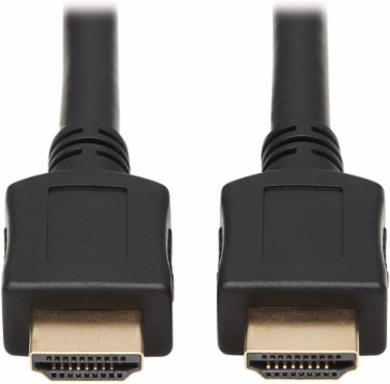

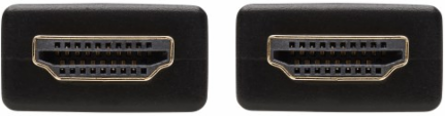

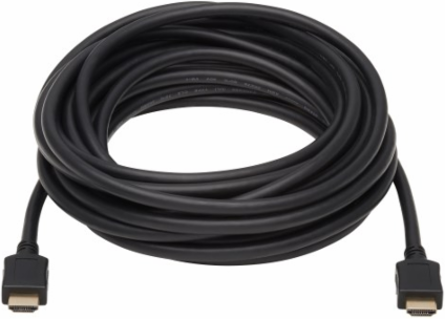

Tripp Lite P569020CL2 High-Speed HDMI Cable with Ethernet (M/M), UHD 4K, 4:4:4, CL2 Rated, Black, 20 ft
- MPN: P569020CL2
- UPC: 037332261632
- PPN: TRP-P569-020-CL2
CAD
$42.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
High-Speed HDMI Cable with Ethernet (M/M), UHD 4K, 4:4:4, CL2 Rated, Black, 20 ft
Documentation & Downloads
Specifications
Performance
| Max Supported Video Resolution | 3840 x 2160 (4K) @ 30Hz |
|---|---|
| HDR Support | No |
| Chroma Sub Sampling | 4:4:4 |
| Audio Specification | ARC |
| Operating Temperature Range | 14° to 122°F (-10° to 50°C) |
| Operating Humidity Range | 0% to 90% RH, Non-Condensing |
| Max Supported Color Depth | 48-bit Deep Color |
|---|---|
| 3D Video Supported | Yes |
| Signal Transmission | Bidirectional |
| HDCP Specification | 1.4; 2.2 |
| Storage Temperature Range | 5° to 140°F (-15° to 60°C) |
| Storage Humidity Range | 0% to 90% RH, Non-Condensing |
Dimensions
| Cable Length | 20 ft |
|---|---|
| Wire Gauge | 28 |
| Side A - Connector 1 | HDMI (MALE) |
| Connector Style | Straight |
| Cable Outer Diameter | 7.3 mm |
|---|---|
| Minimum Bend Radius | 36.5mm |
| Side B - Connector 1 | HDMI (MALE) |
Material
| Product Type | Passive Cable |
|---|---|
| Color | Black |
| Cable Jacket Rating | CL2 |
| Technology | HDMI |
|---|---|
| Material of Construction | PVC |
| Connector Plating | Gold |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
