Intermatic MIL72ASTUZH-24 24-Hour 24V Timer Module, 15 Minute Intervals, 21A SPDT
Intermatic MIL72ASTUZH-24 24-Hour 24V Timer Module, 15 Minute Intervals, 21A SPDT
- MPN: MIL72ASTUZH-24
- UPC: 078275153370
- PPN: INT-MIL72ASTUZH-24
- UNSPSC: 39122208
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$87.70/ EA
Description

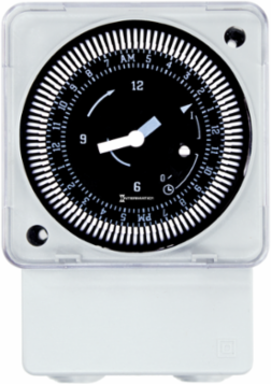

The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.
Features
- 21 A SPDT switch
- Synchronous drive or quartz drive (Q Models) with self-recharging battery backup
- 72-hour carry-over battery backup on Q models
- Captive trippers with 15-minute intervals
- Available with or without override
- True clock face, easy-to-set
- Surface/DIN rail or flush mount
- Clear plastic dust cover
- Compact size
- NA
Specifications
Specifications
- Input Voltage Rating Range(s)
- 24 VAC, 60 Hz
- Color
- White
- Marketing Description
- The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.
- Length
- NA NA
- Width
- 2.828 in
- Country of Origin
- Mexico
Warranty Period1-Year limited
ApplicationsAeration;Air Movement & Ventilation;Refrigeration Merchandiser;Septic Treatment;Generator Exercising
Height4 in
WeightNA lbs
Depth2.063 in
