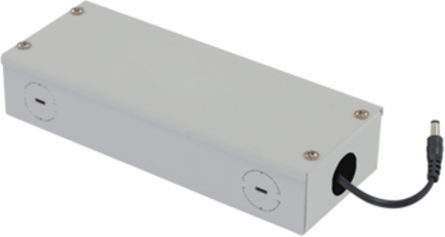

Liteline LED-HWB-24V-24W Hardwired LED Driver, 24W, 24V, Indoor Use Only
- MPN: LED-HWB-24V-24W
- UPC: 771250958198
- PPN: LIT-LED-HWB-24V-24W
CAD
$91.87
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
LED-HWB-24V is a Class 2, constant voltage, 24V, LED driver with hardwire box; for use with 24V LED lighting products. Suitable for indoor use only.
Documentation & Downloads
Specifications
Additional
| Wattage | 24W |
|---|---|
| Voltage | 24V DC |
| Output Current | 1A |
| Classification | Class 2 |
| Power Factor | >0.5 |
| No Load Power Consumption | <0.5W |
| Dimensions | 8 in x 4-7/16 in x 1-5/8 in (203mm x 113mm x 41mm) |
| Certified | cULus Listed |
| Operating Humidity | 5-90% RH |
| Input Voltage | 100-240V AC |
|---|---|
| Input Current | 1.5A max |
| Power Supply Type | Constant Voltage |
| Operating Temperature | 0-40 C |
| Input Frequency | 50/60Hz |
| Leakage Current | <0.25mA |
| Material | 20 gauge painted steel box |
| Storage Humidity | 5-90% RH |
| Warranty | 3 years |
