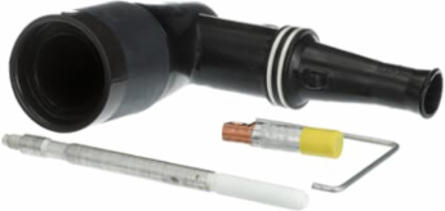

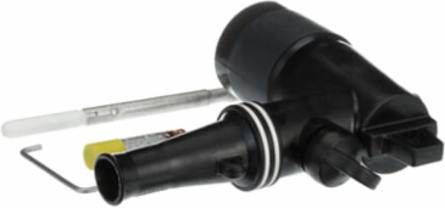

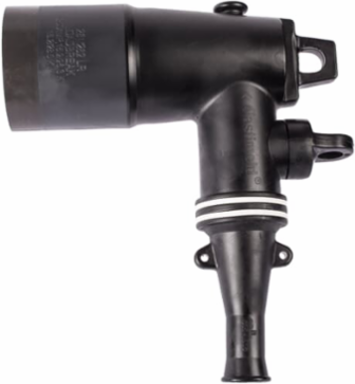

Thomas & Betts 262LR-D5240 25 LB ELB W/TP 1/0STRN .890-1.22 BI
- MPN: 262LR-D5240
- UPC: 075114192255
- PPN: T-B-262LR-D5240
- UNSPSC: 39121421
CAD
$239.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Elbow Connector with Test Point, .890 inch - 1.220 Inch Cable Insulation Diameter, Wire Size 1/0 Stranded or 2/0 Solid. Bi-Metal Compression Lug.
Specifications
Additional Information
- Application
- 200 kV, 200 Amp
- Color
- Black
- Current Rating
- 200 A
- Environmental Conditions
- All Weatheronditions °C
- Insulation Material
- Yes, EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 9.03 inch (299.4 mm) X 8.20 inch (208.3 mm) not including probe, 2.86 inch (72.6 mm) Diameter
- Standards
- ANSI/IEEE Standard 386
- Voltage Rating
- 28 kV
Brand / LabelElastimold
Connection TypeCompression
Effective Date20141027

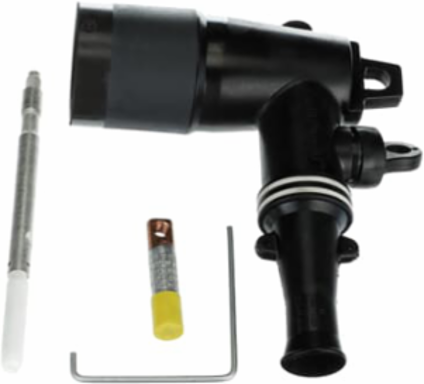

Includes1 Elbow Connector Housing, 1 Compression Lug, 1 Probe, 1 Probe Wrench, 1 Tube of Lubricant, 1 Crimp Chart, 1 V.D. Cap-Peroxide, 1 Installation Instructions sheet.
MaterialHousing - EPDM Rubber
Product TypeLoadbreak Elbow Connector with Test Point
Special Functions28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Non-corrosive capacitive test point.
Temperature Range-40 to +65 °C
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
