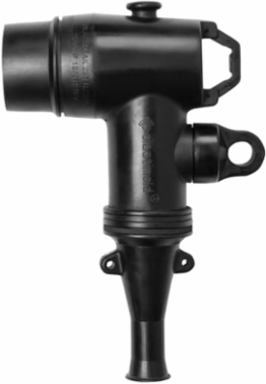

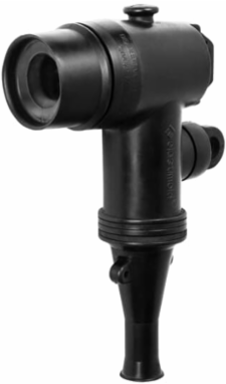

Thomas & Betts 252LR-D5250 25KV 200A DB ELBOW TP NOSEAL D5250
- MPN: 252LR-D5250
- UPC: 075114404594
- PPN: T-B-252LR-D5250
- UNSPSC: 39121421
CAD
$249.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 200 Amp, Deadbreak Elbow Connector with Test Point, Cable Insulation Diameter 0.890-1.220 inches (22.61-30.99mm), Bi-Metal Lug, Conductor Size 250 - 2/0 Stranded/Compressed, 3/0 Solid/Compact. Kit Includes Elbow Connector Housing, Lug, Probe, Probe Wrench, Bail Assembly, V.D. Cap-Peroxide, Tube of Lubricant, Crimp Chart and Installations Instructions. 5.454 x 7.531 inches, 2.097 inch diameter.
Specifications
Additional Information
- Application
- 15/25kV, 200 Amp Deadbreak Connector
- Color
- Black
- Current Rating
- 200 A
- Environmental Conditions
- Fully Submersible
- Insulation Material
- Yes EPDM Rubber
- Product Main Type
- ELASTIMOLD 200A SEPARABLE CONNECTORS
- Product Type
- Deadbreak Elbow Connector with Test Point
- Special Functions
- Fully Shielded, fully Submersible Molded Rubber Housing. Provision for Hot Stick Operation. Non-Corrosive, Capacitive Test Point.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20191014
IncludesElbow Connector Housing, Compression Lug, Probe, Probe Wrench, Bail Assembly, Lubricant, Installation Instructions, Crimp Chart, V.D. Cap-Peroxide.
MaterialHousing - EPDM Rubber
Product NameELECTRICAL CONNECTOR>1000V
SizeLength 7.531 inch from bottom edge to center of Installation O-Ring. Width 5.454 inch.nch from bottom edge to center of Installation O-Ring. Width 5.454 inch.
StandardsANSI/IEEE Standard 386
Voltage Rating15 to 25 kV
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
